Datasheet Wago 2022-109/000-038 — Ficha de datos

Fabricante	Wago
Serie	2022
Numero de parte	2022-109/000-038

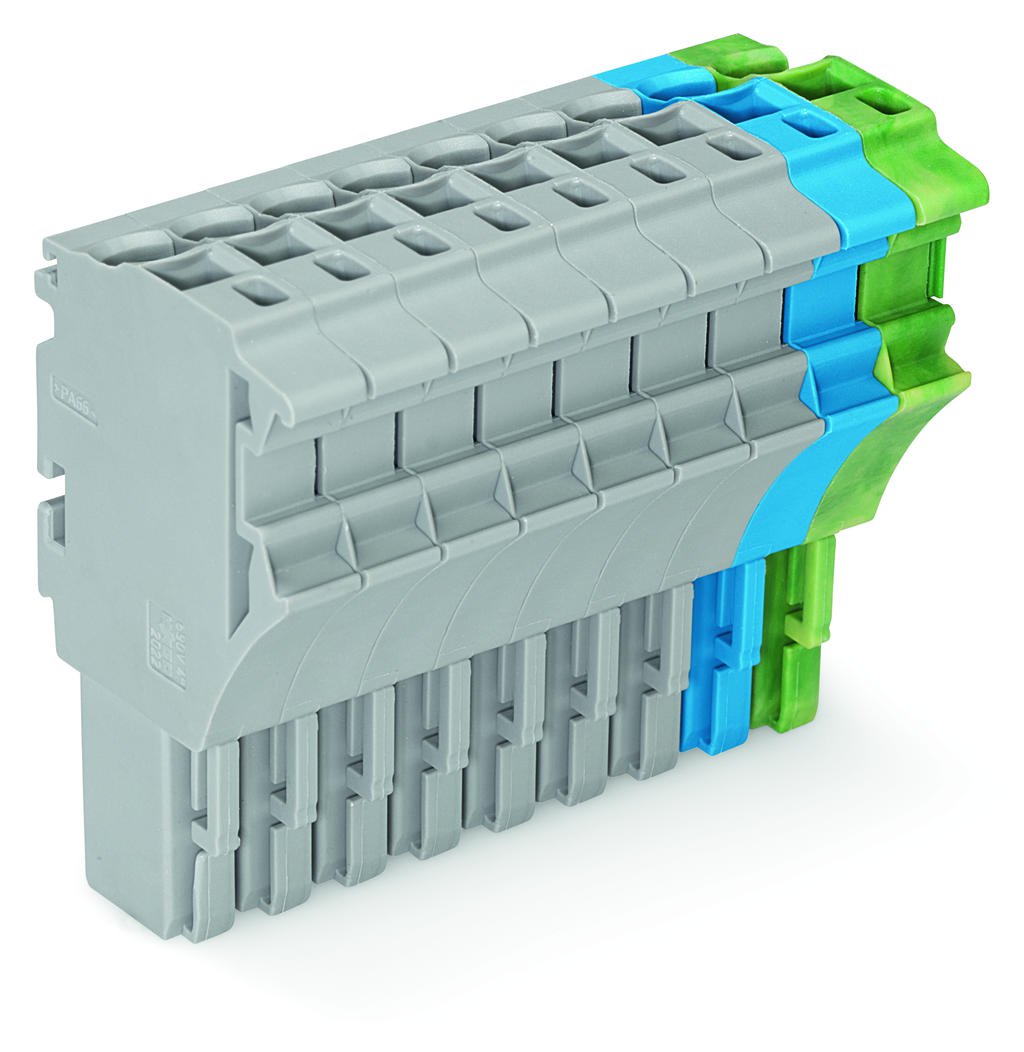

Enchufe hembra de 1 conductor; 2,5 mm²; 9 polos

Precios

Paramétricos

Actuation type	Operating tool Push-in
Color	gray, blue, green-yellow
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Connector connection type	for conductors
Contact type (pluggable connector)	Female connector/socket
Страна происхождения	DE
Depth	22.4 mm / 0.882 inch
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG
Fire load	0.484 MJ
Global Trade Item Number (GTIN)	4045454915629
Height	40.5 mm / 1.594 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Side marking
Nominal cross section	2.5 mm²
Number of Poles	9
Product Group	18 (X-COM-System)
Rated current	24 A
Rated current (2)	32 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	690 V
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	9
Total number of potentials	9
Type of wiring	Front-entry wiring
Weight	29.795 g
Width	46.8 mm / 1.843 inch
