Datasheet Wago 2020-202 — Ficha de datos

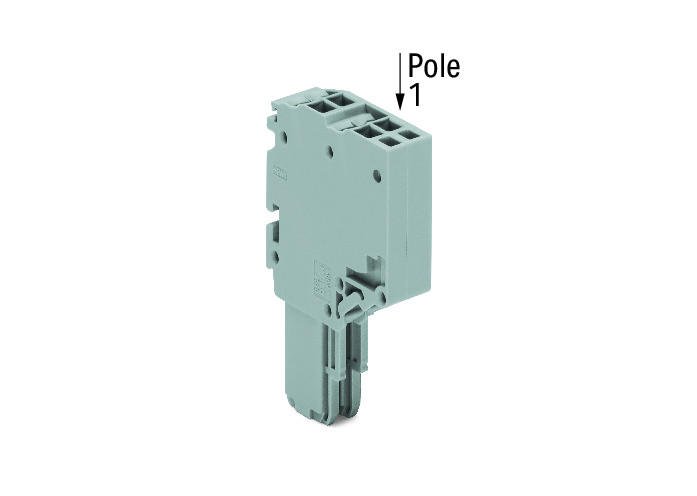

Conector hembra de 2 conductores; 1,5 mm²; 2 polos
Precios
Descripción detallada
Paramétricos
| Actuation type | Open Tool Slot |
| Color | gray |
| Connectable conductor materials | Copper |
| Connection technology | Push-in CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact type (pluggable connector) | Female connector/socket |
| Depth | 25 mm / 0.984 inch |
| Fine-stranded conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.5 mm² / 20 AWG |
| Fire load | 0.104 MJ |
| Global Trade Item Number (GTIN) | 4050821245209 |
| Height | 40.5 mm / 1.594 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Side marking |
| Nominal cross section | 1 mm² |
| Number of Poles | 2 |
| Product Group | 18 (X-COM-System) |
| Rated current | 13.5 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 500 V |
| Solid conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Solid conductor, push-in termination | 0.5 … 1.5 mm² / 20 … 16 AWG |
| Strip length | 9 … 11 mm / 0.35 … 0.43 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 2 |
| Type of wiring | Front-entry wiring |
| Weight | 5.96 g |
| Width | 7.7 mm / 0.303 inch |
Linea modelo
Serie: 2020 (100 desde 263)
- 2020-111/145-000 2020-112 2020-112/000-036 2020-112/000-037 2020-112/000-038 2020-112/000-039 2020-112/135-000 2020-112/145-000 2020-113 2020-113/000-036 2020-113/000-037 2020-113/000-038 2020-113/000-039 2020-113/135-000 2020-113/145-000 2020-114 2020-114/000-036 2020-114/000-037 2020-114/000-038 2020-114/000-039 2020-114/135-000 2020-114/145-000 2020-115 2020-115/000-036 2020-115/000-037 2020-115/000-038 2020-115/000-039 2020-115/135-000 2020-115/145-000 2020-1201 2020-1204 2020-1207 2020-1291 2020-1292 2020-1301 2020-1304 2020-1307 2020-1391 2020-1392 2020-1401 2020-1404 2020-1407 2020-1491 2020-1492 2020-161 2020-164 2020-167 2020-181 2020-184 2020-187 2020-202 2020-202/122-000 2020-202/132-000 2020-202/142-000 2020-203 2020-203/000-036 2020-203/000-037 2020-203/000-038 2020-203/000-039 2020-203/122-000 2020-203/132-000 2020-203/142-000 2020-204 2020-204/000-036 2020-204/000-037 2020-204/000-038 2020-204/000-039 2020-204/124-000 2020-204/133-000 2020-204/143-000 2020-205 2020-205/000-036 2020-205/000-037 2020-205/000-038 2020-205/000-039 2020-205/124-000 2020-205/133-000 2020-205/143-000 2020-206 2020-206/000-036 2020-206/000-037 2020-206/000-038 2020-206/000-039 2020-206/133-000 2020-206/143-000 2020-207 2020-207/000-036 2020-207/000-037 2020-207/000-038 2020-207/000-039 2020-207/124-000 2020-207/134-000 2020-207/144-000 2020-208 2020-208/000-036 2020-208/000-037 2020-208/000-038 2020-208/000-039 2020-208/124-000 2020-208/134-000
Clasificación del fabricante
- Rail / Chassis Terminal blocks | Pluggable Connection Systems
