Datasheet Wago 2201-1407 — Ficha de datos

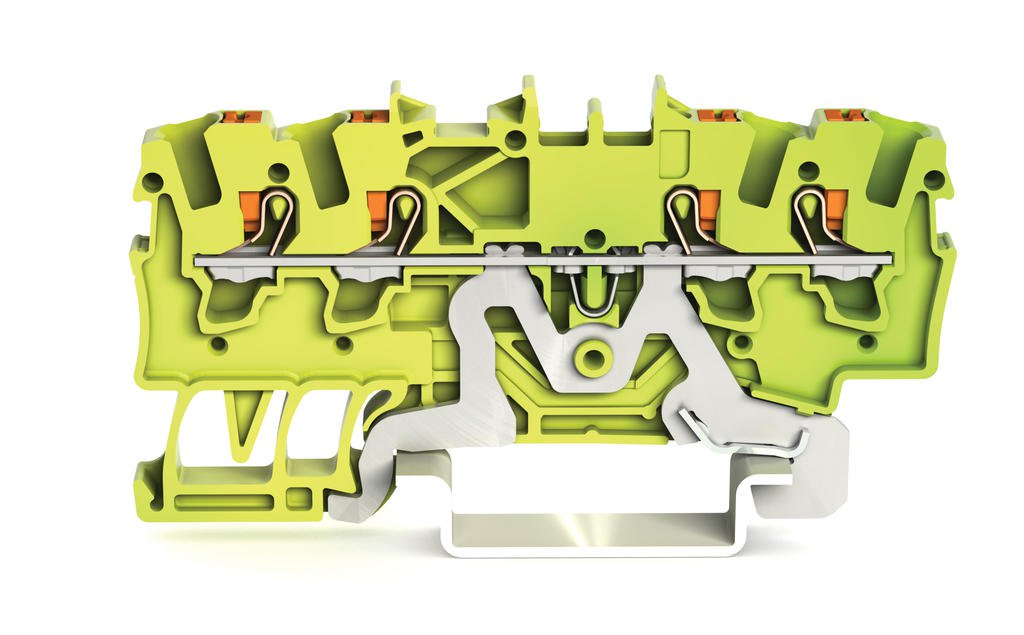

Bloque de terminales de tierra TOPJOB S con pulsadores; montaje en riel; 4 conductores; 4,2 mm de ancho; verde amarillo
Precios
Paramétricos
| Actuation type | Push-button |
| Color | green-yellow |
| Connectable conductor materials | Copper |
| Connection technology | Push-in CAGE CLAMP® |
| Страна происхождения | DE |
| Depth | 69.9 mm / 2.752 inch |
| Design | horizontal |
| Fine-stranded conductor | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.75 mm² / 18 AWG |
| Global Trade Item Number (GTIN) | 4055143695183 |
| Height from upper-edge of DIN-35 rail | 32.9 mm / 1.295 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Center/side marking |
| Nominal cross section | 1.5 mm² |
| Number of levels | 1 |
| Packaging type | BOX |
| Solid conductor | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Solid conductor, push-in termination | 0.75 … 2.5 mm² / 18 … 14 AWG |
| Strip length | 9 … 11 mm / 0.35 … 0.43 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 9.021 g |
| Width | 4.2 mm / 0.165 inch |
Linea modelo
Serie: 2201 (9)
Clasificación del fabricante
- Rail / Chassis Terminal blocks
Otros nombres:
22011407, 2201 1407
