Datasheet Wago 2002-4141 — Ficha de datos

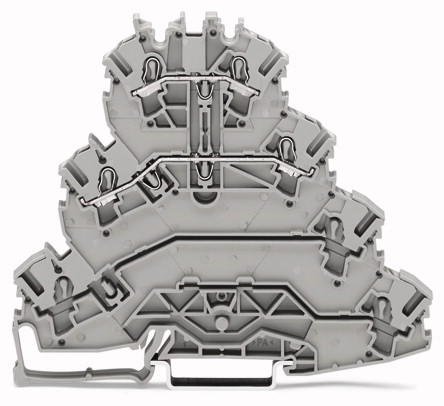

Bloque de terminales de cubierta cuádruple TOPJOB S; a través / a través (L2 / L1); con marcador de portador; montaje en riel; 2 conductores; 5,2 mm de ancho; gris
Precios
Paramétricos
| Actuation type | Open Tool Slot |
| Color | gray |
| Connectable conductor materials | Copper |
| Connection technology | Push-in CAGE CLAMP® |
| Страна происхождения | CN |
| Depth | 103.5 mm / 4.075 inch |
| Fine-stranded conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.75 mm² / 18 AWG |
| Fire load | 0.426 MJ |
| Global Trade Item Number (GTIN) | 4050821579434 |
| Height from upper-edge of DIN-35 rail | 96.8 mm / 3.811 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Nominal cross section | 2.5 mm² |
| Number of connection points | 2 |
| Number of connection points (connection type) | 2 |
| Number of levels | 4 |
| Potential marking | L1 - L2 |
| Product Group | 22 (TOPJOB S) |
| Rated current | 20 A |
| Rated current (2) | 25 A |
| Rated impulse voltage (III / 3) | 8 kV |
| Rated voltage (III / 3) | 800 V |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Solid conductor, push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 2 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 18.349 g |
| Width | 5.2 mm / 0.205 inch |
