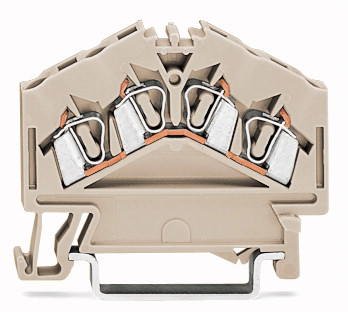

Datasheet Wago 280-996 — Ficha de datos
4 conductores a través del bloque de terminales; 2,5 mm²; adecuado para aplicaciones Ex e II; marcado central; para carril DIN 35 x 15 y 35 x 7,5; ABRAZADERA
Precios
Paramétricos
| Actuation type | Operating tool |
| Color | light gray |
| Connectable conductor materials | Copper |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Depth | 50.5 mm / 1.988 inch |
| Design | angled |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fire load | 0.125 MJ |
| Global Trade Item Number (GTIN) | 4044918457170 |
| Height from upper-edge of DIN-35 rail | 36.5 mm / 1.437 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Center marking |
| Number of levels | 1 |
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| Rated voltage EN (Ex e II) | 550 V |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 7.437 g |
| Width | 5 mm / 0.197 inch |
Linea modelo
Serie: 280 (100 desde 409)
- 280-803/281-416 280-803/281-417 280-803/281-418 280-803/281-420 280-803/281-421 280-804 280-805 280-809/281-413 280-809/281-434 280-815/281-410 280-815/281-411 280-816 280-826 280-829 280-830 280-831 280-832 280-833 280-834 280-835 280-835/056-000 280-836 280-837 280-837/999-950 280-838 280-839 280-850 280-850/281-413 280-850/281-414 280-850/281-415 280-852 280-852/281-413 280-852/281-414 280-852/281-415 280-854 280-854/281-413 280-854/281-414 280-854/281-415 280-856 280-856/281-413 280-856/281-414 280-856/281-415 280-868 280-869 280-870 280-871 280-874 280-875 280-876 280-879 280-880 280-881 280-882 280-883 280-884 280-885 280-889 280-891 280-901 280-902 280-902/056-000 280-903 280-904 280-905 280-906 280-907 280-907/999-950 280-912 280-913 280-914 280-915/281-410 280-915/281-411 280-916 280-940/281-410 280-940/281-411 280-941/281-489 280-941/281-490 280-941/281-491 280-941/281-492 280-942/281-487 280-942/281-488 280-943/281-413 280-943/281-434 280-944/281-589 280-944/281-590 280-944/281-591 280-944/281-592 280-944/281-593 280-944/281-594 280-944/281-595 280-946 280-989 280-990 280-992 280-993 280-994 280-995 280-996 280-998 280-999
Clasificación del fabricante
- Rail / Chassis Terminal blocks
Otros nombres:
280996, 280 996
