Datasheet Wago 769-176/000-006 — Ficha de datos

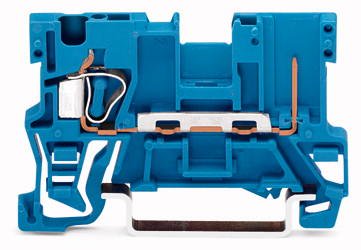

Bloque de terminales portador de 1 conductor / 1 pin; para carril DIN 35 x 15 y 35 x 7,5; 4 mm²; ABRAZADERA

Precios

Wago 769-176/000-006

Actuation type	Operating tool
Color	blue
Connectable conductor materials	Copper
Connection technology	CAGE CLAMP®
Страна происхождения	CN
Depth	52.5 mm / 2.067 inch
Design	horizontal
Fine-stranded conductor	0.08 … 4 mm² / 28 … 12 AWG
Fire load	0.101 MJ
Global Trade Item Number (GTIN)	4045454871703
Height from upper-edge of DIN-35 rail	28.5 mm / 1.122 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center marking
Nominal cross section	4 mm²
Number of levels	1
Product Group	18 (X-COM-System)
Rated current	32 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	500 V
Solid conductor	0.08 … 4 mm² / 28 … 12 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 Inch
Total number of connection points	1
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	5.256 g
Width	5 mm / 0.197 inch

Serie: 769 (100 desde 460)

769176/000006, 769 176/000 006
