Datasheet Wago 870-682 — Ficha de datos

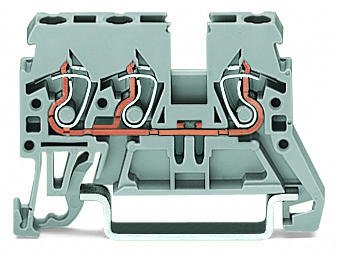

3 conductores a través del bloque de terminales; 2,5 mm²; ranuras para marcadores laterales; para carril DIN 35 x 15 y 35 x 7,5; ABRAZADERA

Precios

Actuation type	Operating tool
Color	orange
Connectable conductor materials	Copper
Connection technology	CAGE CLAMP®
Страна происхождения	DE
Depth	49 mm / 1.929 inch
Design	horizontal
Fine-stranded conductor	0.08 … 4 mm² / 28 … 12 AWG
Fire load	0.101 MJ
Global Trade Item Number (GTIN)	4045454094560
Height from upper-edge of DIN-35 rail	27.5 mm / 1.083 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Side marking
Number of levels	1
Rated current	24 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	500 V
Solid conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Strip length	6 … 7 mm / 0.24 … 0.28 Inch
Total number of connection points	3
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	5.928 g
Width	5 mm / 0.197 inch

Serie: 870 (100 desde 166)

870682, 870 682
