Datasheet Wago 280-624/281-434 — Ficha de datos

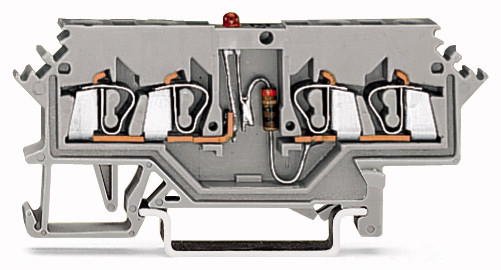

Bloque de terminales LED; con LED rojo (PN); 24 VDC; montaje en riel; 4 conductores; 5 mm de ancho; gris
Precios
Paramétricos
| Actuation type | Operating tool |
| Color | gray |
| Connectable conductor materials | Copper |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Depth | 73 mm / 2.874 inch |
| Design | horizontal |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fire load | 0.141 MJ |
| Global Trade Item Number (GTIN) | 4045454396589 |
| Height from upper-edge of DIN-35 rail | 28 mm / 1.102 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Side marking |
| Nominal voltage | 24 V |
| Number of levels | 1 |
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Total number of connection points | 4 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Voltage type (1) | DC |
| Weight | 8.449 g |
| Width | 5 mm / 0.197 inch |
Linea modelo
Serie: 280 (100 desde 409)
- 280-573 280-574 280-574/281-483 280-575 280-575/280-320 280-575/280-323 280-576 280-576/281-496 280-577 280-577/281-496 280-578 280-580 280-580/281-434 280-581/281-413 280-582 280-583 280-584 280-584/281-483 280-585 280-586 280-586/281-496 280-587 280-588 280-588/280-320 280-588/280-323 280-592 280-593 280-597 280-601 280-602 280-603 280-604 280-606 280-607 280-607/999-950 280-608 280-609 280-610 280-612 280-613/281-410 280-613/281-411 280-614 280-616 280-618 280-619 280-621 280-622 280-623/281-410 280-623/281-411 280-624/281-413 280-624/281-434 280-626 280-627 280-628 280-629 280-632 280-633 280-634 280-636 280-637 280-637/999-950 280-638 280-639 280-640 280-641 280-646 280-649 280-650 280-650/056-000 280-651 280-653 280-654 280-654/056-000 280-655/281-410 280-655/281-411 280-656 280-658/281-413 280-658/281-434 280-671 280-672 280-673/281-410 280-673/281-411 280-675 280-676 280-677 280-677/999-950 280-678 280-681 280-683 280-684 280-685 280-686 280-687 280-687/999-950 280-691 280-695 280-762 280-763 280-764 280-765
Clasificación del fabricante
- Rail / Chassis Terminal blocks
Otros nombres:
280624/281434, 280 624/281 434
