Datasheet Wago 870-557 — Ficha de datos

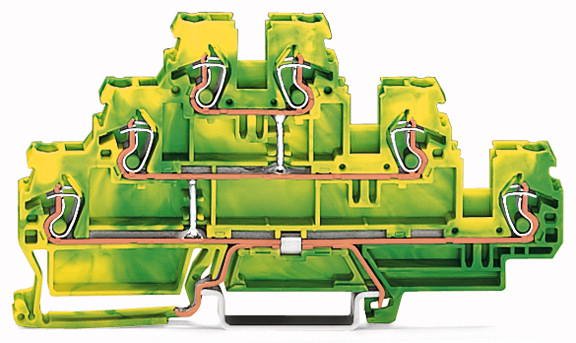

Bloque de terminales de tres pisos; Bloque de terminales de tierra de 6 conductores; EDUCACIÓN FÍSICA; sin marcador de portador; comunalidad interna; para carril DIN 35 x 15 y 35 x 7,5; 2,5 mm²; ABRAZADERA
Precios
Paramétricos
| Actuation type | Operating tool |
| Color | green-yellow |
| Connectable conductor materials | Copper |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Depth | 106 mm / 4.173 inch |
| Design | horizontal |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fire load | 0.279 MJ |
| Global Trade Item Number (GTIN) | 4045454129064 |
| Height from upper-edge of DIN-35 rail | 52.5 mm / 2.067 inch |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Side marking |
| Number of levels | 3 |
| Potential marking | PE |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 Inch |
| Total number of connection points | 6 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 19.339 g |
| Width | 5 mm / 0.197 inch |
Linea modelo
Serie: 870 (100 desde 166)
- 870-503 870-504 870-507 870-508 870-509 870-517 870-518 870-519 870-523/281-579 870-523/281-580 870-523/281-581 870-523/281-582 870-523/281-583 870-523/281-584 870-523/281-585 870-523/281-586 870-523/281-587 870-523/281-588 870-523/281-589 870-523/281-590 870-523/281-591 870-523/281-592 870-523/281-593 870-523/281-594 870-523/281-595 870-527 870-531 870-532 870-533 870-534 870-535 870-536 870-537 870-538 870-539 870-540/281-410 870-540/281-411 870-541/281-489 870-541/281-490 870-541/281-491 870-541/281-492 870-541/281-755 870-541/281-872 870-542/281-487 870-542/281-488 870-543/281-413 870-543/281-434 870-551 870-553 870-556 870-557 870-558 870-559 870-567 870-568 870-569 870-573 870-574 870-577 870-590/281-410 870-590/281-411 870-590/281-675 870-590/281-676 870-590/281-780 870-592/281-411 870-592/281-491 870-593/281-413 870-593/281-434 870-596/281-673 870-596/281-674 870-681 870-682 870-683 870-684 870-685 870-687 870-826 870-831 870-832 870-833 870-834 870-835 870-837 870-901 870-902 870-903 870-904 870-905 870-907 870-907/999-950 870-909 870-911 870-912 870-914 870-917 870-919 870-923 870-924 870-925 870-926
Clasificación del fabricante
- Rail / Chassis Terminal blocks
Otros nombres:
870557, 870 557
