Datasheet Wago 2002-4157 — Ficha de datos

Fabricante	Wago
Serie	2002
Numero de parte	2002-4157

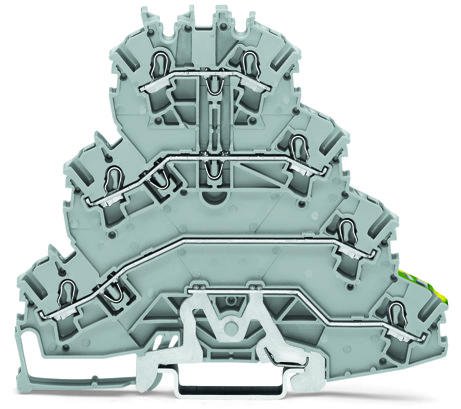

Bloque de terminales de cubierta cuádruple TOPJOB S; tierra / a través / a través / a través (PE / L3 / L2 / L1); con soporte de marcador; montaje en riel; 2 conductores; 5,2 mm de ancho; gris

Precios

Paramétricos

Actuation type	Open Tool Slot
Color	gray
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Страна происхождения	CN
Depth	103.5 mm / 4.075 inch
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG
Fire load	0.409 MJ
Global Trade Item Number (GTIN)	4050821579441
Height from upper-edge of DIN-35 rail	96.8 mm / 3.811 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Nominal cross section	2.5 mm²
Number of connection points	1
Number of connection points (connection type)	2
Number of levels	4
Potential marking	L1 - L2 - L3 - PE
Product Group	22 (TOPJOB S)
Rated current	20 A
Rated current (2)	25 A
Rated impulse voltage (III / 3)	8 kV
Rated voltage (III / 3)	800 V
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	7
Total number of potentials	4
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	25.965 g
Width	5.2 mm / 0.205 inch
