Manufacturer: Analog Devices

Description: MIC, MEMS, OMNI-DIR, ANALOG, 3LGA

Download Data Sheet

Docket:
Data Sheet
FEATURES
Tiny 3.35 mm Ч 2.50 mm Ч 0.88 mm surface-mount package High SNR of 62 dBA High sensitivity of -38 dBV Flat frequency response from 100 Hz to 15 kHz Low current consumption: <250 A Single-ended analog output High PSRR of 70 dB Compatible with Sn/Pb and Pb-free solder processes RoHS/WEEE compliant

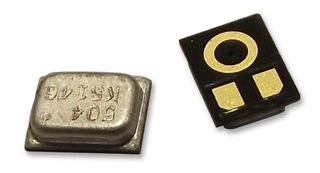

Omnidirectional Microphone with Bottom Port and Analog Output ADMP404
GENERAL DESCRIPTION

Specifications:

• Control / Process Application: Voice Guidance Systems, Industrial and Consumer Devices, Security Systems
• MSL: MSL 5 - 48 hours
• Number of Pins: 3
• Operating Temperature Range: -40°C to +70°C
• Package / Case: LGA
• RoHS: Yes
• SVHC: No SVHC (19-Dec-2011)

Otros nombres:

ADMP404ACEZRL7, ADMP404ACEZ RL7
