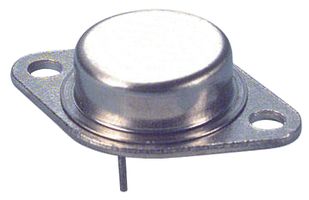

Datasheet 2N3771 - Multicomp POWER TRANSISTOR, NPN, 40 V, 30 A, TO-3 — Ficha de datos

Descripción detallada

Manufacturer: Multicomp

Description: POWER TRANSISTOR, NPN, 40 V, 30 A, TO-3

Download Data Sheet

Docket:
Silicon NPN Power Transistor
Features:
· Excellent safe operating area · High DC current gain-hFE = 15 (Minimum) at IC = 15 A · Low saturation voltage : VCE (sat) = 2 V (Maximum) at IC = 15 A
Pin 1.

Base 2. Emitter 3. Collector (Case)
Dimension
